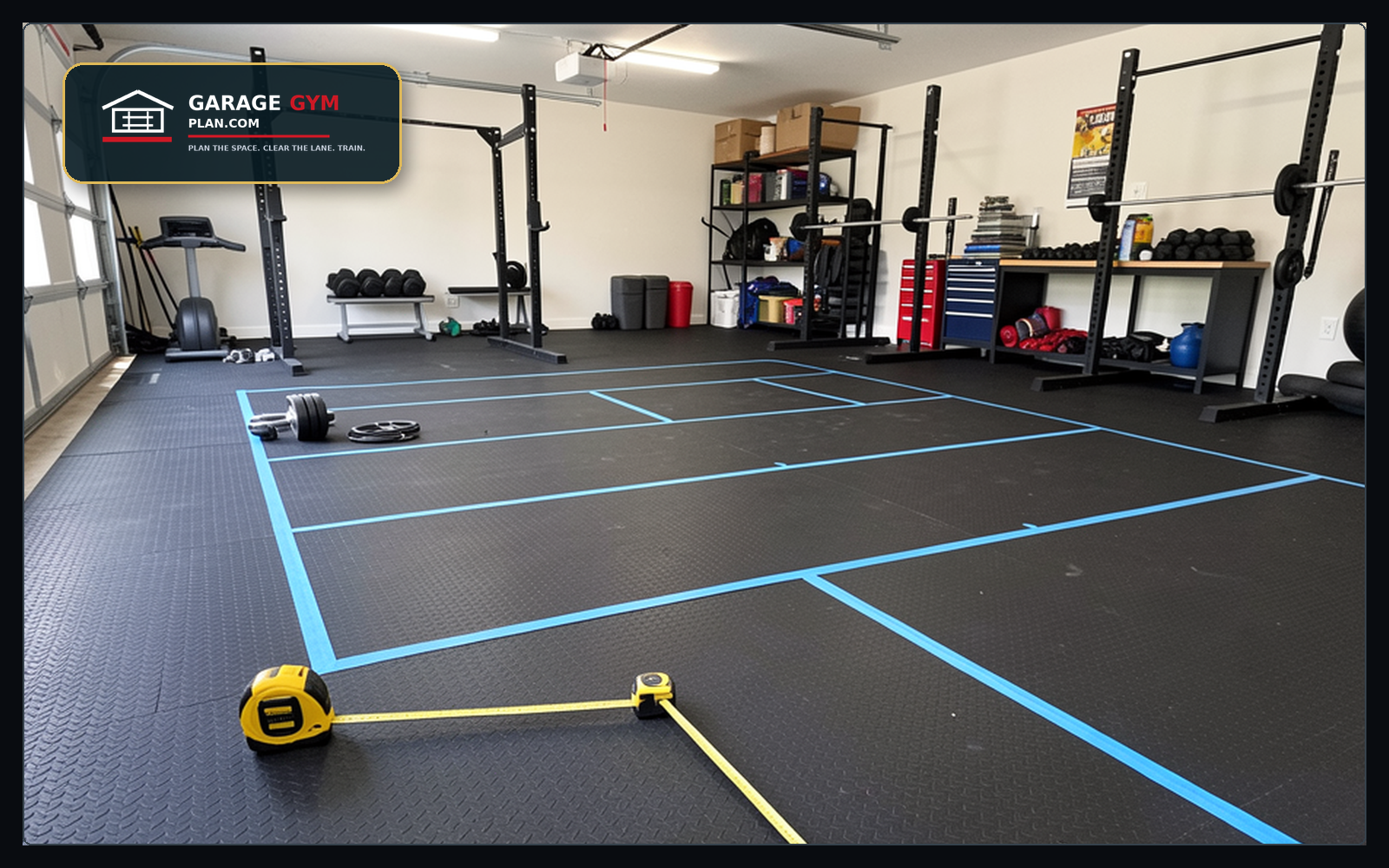

Garage Gym Floor Plan Examples for One-Car, Two-Car, and Half-Garage Setups

Use floor plan examples as patterns, not rules. The right plan depends on the lane, doors, ceiling, parking, and storage needs.

Floor Plan Examples: plan the setup before buying.

Use this guide if

You need a visual way to choose between common garage gym layouts
Your space is close to one of the typical one-car, two-car, or half-garage patterns
You want examples that connect to measurement and storage decisions

The planning sequence

Step 1: Start with the closest layout pattern, then adjust for fixed obstacles
Step 2: Place the rack and bar path before accessory storage
Step 3: Reserve open floor in every example, even if the gym is small
Step 4: Use wall storage to keep the example from becoming a clutter map
Step 5: Test the plan with tape before moving heavy equipment

Fast decision ruleUse floor plan examples as patterns, not rules. The right plan depends on the lane, doors, ceiling, parking, and storage needs. If an item makes the main training lane harder to use, it belongs in a different zone or later buying phase.

Floor-plan example selector

Match the example to the constraint that actually limits your garage: parking, ceiling height, rack depth, storage load, or traffic flow.

Example	Use when	Do first	Planning follow-up	Compare
One-car wall-rack plan	The garage must still hold tools, bikes, or seasonal storage.	Keep the rack and bench on one side and protect a clean walking lane.	Compare the one-car layout guide before buying a full-depth rack.	View options
Two-car split plan	One bay can train while the other still parks a car.	Tape the car door swing, rack footprint, and plate loading zone together.	Use the two-car layout guide to prevent storage creep.	View options
Low-ceiling plan	Door tracks, joists, or lights limit pressing and pull-ups.	Choose the rack and movements around the lowest obstruction.	Use the low-ceiling layout guide before ordering a rack.	Plan first
Storage-first plan	Plates, dumbbells, handles, and bands are the current bottleneck.	Group gear by use point, then choose shelves, hooks, or carts.	Use storage pages after the floor lanes are locked.	Plan first

Common mistakes to avoid

Treating example diagrams as exact dimensions
Forgetting that doors, rails, and shelves change the usable shape
Ignoring the setup path from storage to workout zone

Floor plan decision guide

Choose the example that protects the constraint you cannot easily change: the car path, ceiling height, garage door, storage wall, or walking lane.

Example	Use when	Do first
One-car wall-rack plan	The garage must still hold tools, bikes, or seasonal storage.	Keep the rack and bench on one wall and tape the car-door swing before buying.
Half-garage training lane	You share the garage with a vehicle or family storage.	Reserve one clear lifting lane and put low-use storage outside that lane.
Two-car zone plan	You can dedicate one bay but still need the other bay functional.	Place rack, plates, and bench so the garage door and walkway still work.
Small-space foldaway plan	Floor space matters more than always-ready equipment.	Measure setup and teardown steps; if it takes too long, simplify the gear list.

Tape the rack, bench, plates, and walking lane before buying storage.
Check the plan with the garage door open, door closed, and car present if applicable.
Prefer a boring plan you will reset every time over a perfect plan that stays cluttered.
